Features Specifications Technology Application Inquriy

1. There are no sharp or raw edges enhanced safety

2. Closed and rolled beam section at the top and bottom provides high strength and rigidity

3. ‌Easy to install, it is suitable for various terrains and environments‌

4. The BRC fence has good corrosion resistance and oxidation resistance, extending its service life

5. The beautiful grid structure, broad vision, and diverse colors, which can beautify the environment‌‌‌

Specifications

BRC Fence & Roll Top Fence
Mesh Opening	Wire Diameter	Height of Fence	Width of Fence	Post Type
50x200mm 50x100mm 50x150mm 75x100mm 75x200mm	4/4.5/5/6mm	0.9-2.4m	1.5-3.0m	Round Post 48ODx1.5/2.0mm 60ODx1.5/2.0mm	Square Post(SHS) 50x50x1.5/2.0mm 60x60x1.5/2.0mm 80x80x1.5/2.0mm	Rectangular Post(RHS) 40x60x1.5/2.0mm 40x80x1.5/2.0mm 60x80x1.5/2.0mm 80x100x1.5/2.0mm

Technology

Panel wire: Q195&Q235 Low carbon wire

Post: rectangular, square, round post

Surface treatment: Hot dipped galvanized, PVC coated, Powder coated

Color: Green, black, yellow, white,blue, etc.

BRC Fence Roll Top Fence Installation manner

1.The post buried under the ground 500mm-800mm and pouring concrete when installation them.

2. Welded flange base under the post ,and use setscrews to install on the hard ground.

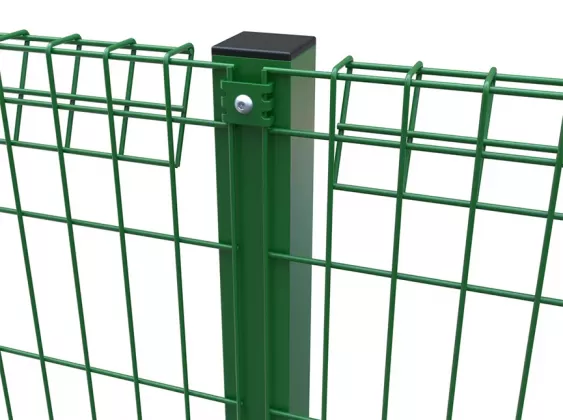

The panels are fixed to the posts with steel clips and galvanized safety screwed into the threaded inserts of the posts. All posts are supplied with protective plastic caps. The install is easy but the fence is strong. We can produce different sizes according to the detailed requirements of customers. Our design team can provide simulated installation videos according to your requirements to present the effect you want.

Application

Rolling top fence are widely used in various places, including highways, roads, railways, airports, factory areas, factory buildings, residential areas, port terminals, municipal green spaces, garden flower beds and green spaces. Its sturdiness, durability, beauty and transparency make it an important safety protection facility‌.

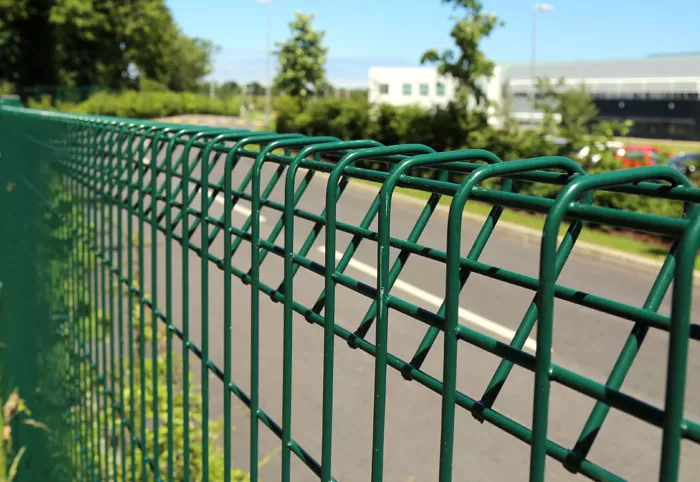

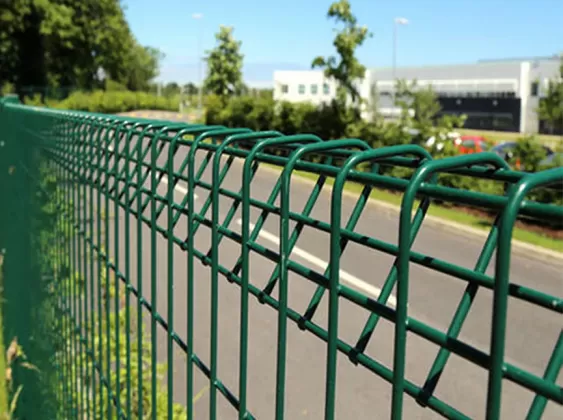

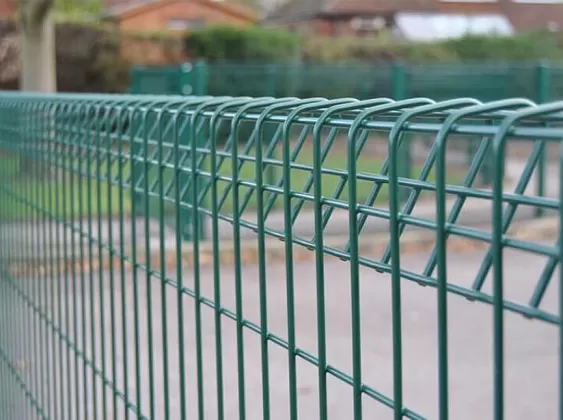

Roll top fence

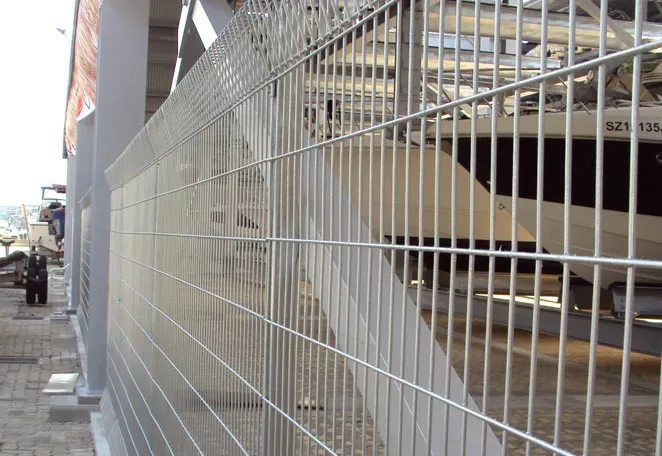

Parking of fence

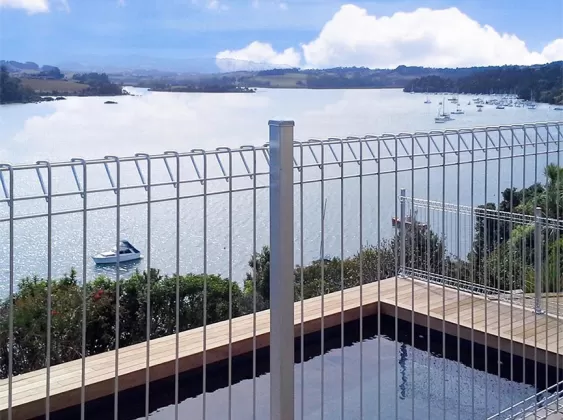

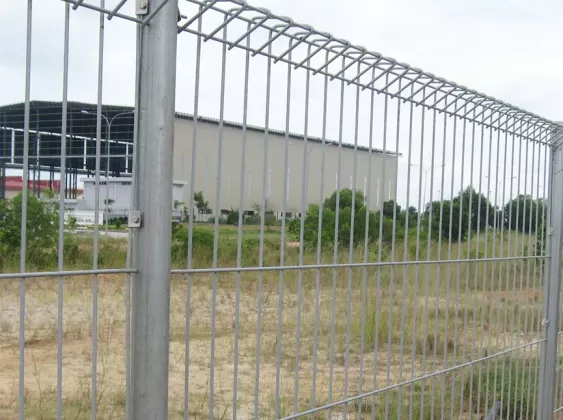

Rolling top fence
