Curvy welded fence, also known as 3D security fence, is a kind of specially designed welded wire mesh with V-shaped bending curves in its longitudinal direction. It is made of high quality carbon steel wires where wires in the horizontal and vertical direction are welded at their junctions to provide a rigid wire mesh fence. Generally, the number of V-shaped curves varies as the height of welded wire mesh varies. Its attractive appearance, rigid structure and excellent visibility make it become a popular security fence that is widely used in railways, airports, schools, factories, residential areas, gardens, parks, sports stadiums, etc.

Share:

Features Specifications Technology Application Inquriy

(1) Durable

(2) Long Life

(3) high bearing capacity

(4) rust resistance.

(5) high elongation.

(6) Good softness and flexibility, can be bent to various shapes.

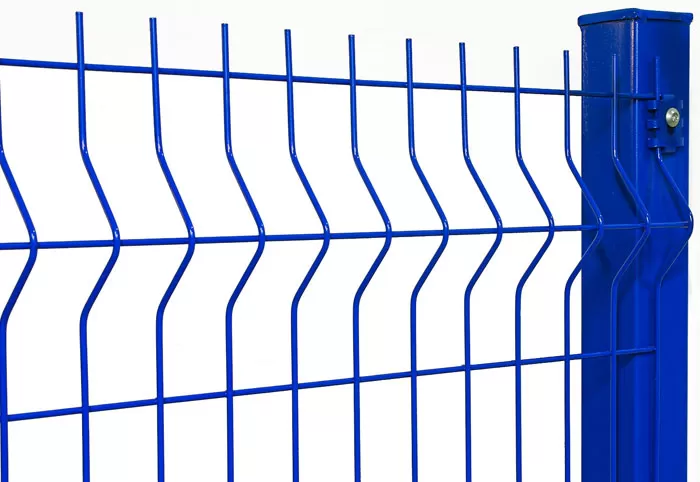

Curvy welded fence

Specifications

Mesh OpeningWire ThicknessPanel WidthPanel HeightNumber of FoldsPost Type
50x100mm
50x150mm
50x200mm
55x200mm
75x150mm
etc.
3.0mm
or
3.5mm
or
4.0mm
or
4.5mm
or
5.0mm
2.0m
or
2.50m
or
2.9m
630mm  Round Post
  48x1.5/2.0mm
  60x1.5/2.0mm
Square Post(SHS)
50X50x1.5/2.0mm
60x60x1.5/2.0mm
80x80x1.5/2.0mm
Rectangular Post
      (RHS)
40x60x1.5/2.0mm
40x80x1.5/2.0mm
60x80x1.5/2.0mm
80x100x1.5/2.0mm
830mm
1030mm
1230mm
1430mm
1530mm
1630mm
1730mm
1830mm
1930mm
2030mm
2230mm
2430mm


Welded Mesh Fence

Technology

Specification of 3D Fence
Mesh Opening50×100mm;50×150mm;50×200mm;55×200mm;75×150mm  etc.
Wire Thickness3.0mm;3.5mm;4.0mm;4.50mm;5.00mm
Panel Width2.0m;2.50m;2.9m
Panel Height830
mm
1030
mm
1430
mm
1630
mm
1830
mm
193
0m
m
2030
mm
223
0mm
243
0m
m
Number of Folds
Post Type
Round Post
48×1.5/2.0mm
60×1.5/2.0mm
Square Post(SHS)
50X50×1.5/2.0mm
60×60×1.5/2.0mm
80×80×1.5/2.0mm
Rectangular
Post(RHS)
40×60×1.5/2.0mm
40×80×1.5/2.0mm
60×80×1.5/2.0mm
80×100×1.5/2.0mm
Surface treatmentHot dipped galvanized,galvanized +powder coated,galvanized+PVC
coated
ColorGreen、Gray、Black、White or Custom Color
RemarkWe could according your requirement custom if above specification is
not satisfied with you.

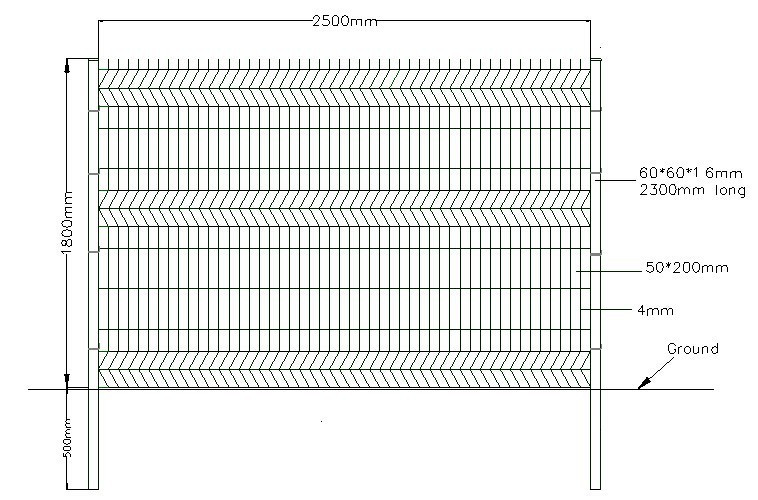

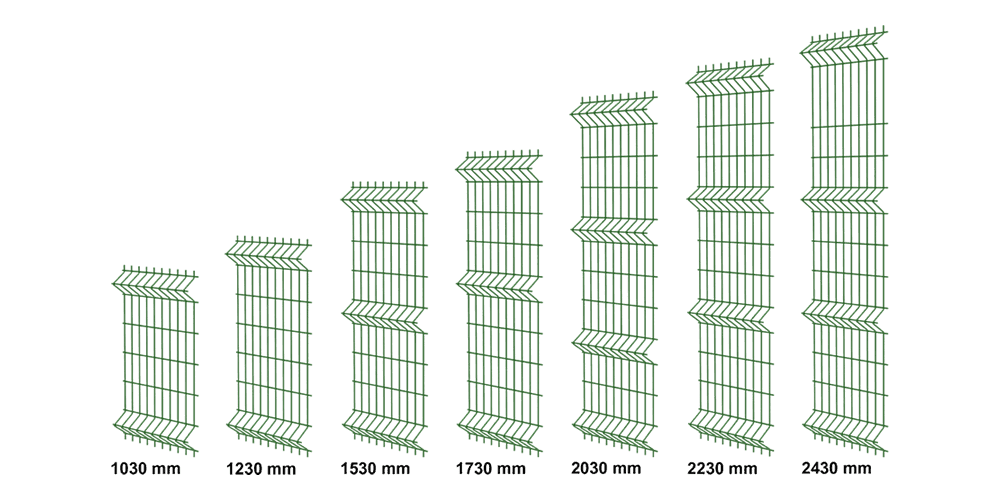

Drawing

Welded Mesh Fence

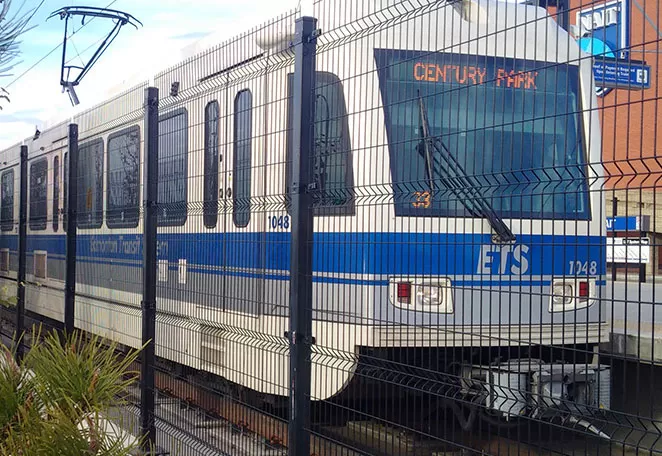

Application

Curvy welded fence is commonly used for boundary demarcation, security, and decorative purposes in residential, commercial, and industrial settings due to its aesthetically pleasing curved design and robust welded construction.

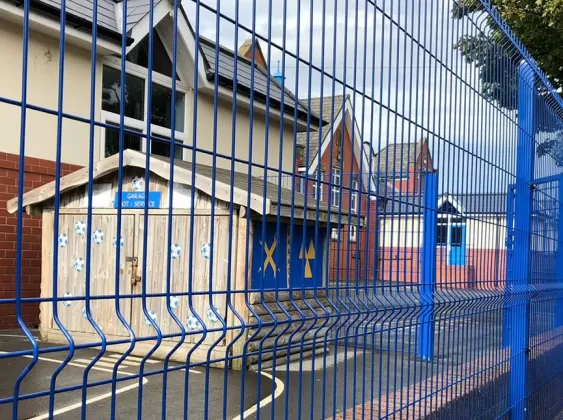

welded mesh fence 3D

welded mesh fence 3D

Curvy welded fence panel

Curvy welded fence panel
