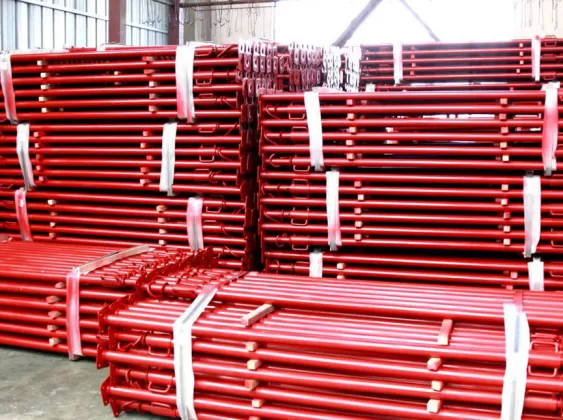

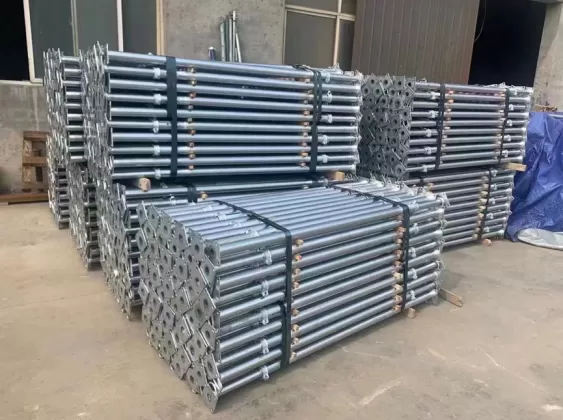

Scaffolding support Adjustable pipe are a commonly used auxiliary tool in construction. Their main function is to support the building to ensure the safety and stability of the construction. During the construction process, the support frame can bear the weight of the building to ensure that the building will not tilt or collapse.


Share:

Features Specifications Technology Application Inquriy

‌1. Adjustable height‌: The design of the adjustable tube allows construction workers to adjust the height of the scaffolding as needed, ensuring safety and convenience during the construction process.



2. Large bearing capacity‌: The adjustable tube is usually made of Q235 steel, which has strong hardness and large bearing capacity. It can withstand large loads and ensure construction safety.

3. Convenient construction‌: The design of the adjustable tube makes the construction process more convenient and quick. For example, the adjustable independent



4. Scaffolding support Adjustable pipe not only solves the problems caused by the traditional steel pipe scaffolding and bowl-shaped scaffolding support methods, but also reduces the workload of formwork and improves construction efficiency


Specifications

POPULAR SPECIFICATION FOR MIDDLE EAST

  THCKNESS MINMAXODID
1.5-3.5mm1.7m3.0m60mm48mm
1.8m3.2m60mm48mm
2.0m3.5m60mm48mm
2.0m3.6m60mm48mm
2.2m4.0m60mm48mm
2.5m4.5m60mm48mm
2.8m5.0m60mm48mm
3.0m5.0m60mm48mm
3.5m6.0m60mm48mm

POPULAR SPECIFICATION FOR EURO

THICKNESSMIN LENGTHMAX LENGTHOD     ID



  1.5-3.5mm
 1.7m3.0m56mm 48mm
    1.8m3.2m56mm 48mm
2.0m3.5m56mm 48mm
2.0m3.6m56mm      48mm
2.2m4.0m56mm 48mm
2.5m4.5m56mm      48mm
2.8m5.0m56mm 48mm
3.0m5.0m56mm 48mm
3.5m6.0m56mm 48mm

  POPULAR SPECIFICATION FOR SOUTH AMRICA

THICKNESSMINMAXODID
1.5-2.5mm0.8m1.4m48mm40mm
  1.6m3.0m48mm  40mm
2.0m3.5m48mm40mm
2.2m4.0m48mm  40mm






Technology

The Scaffolding support Adjustable pipe is mainly composed of the following parts:



‌Upper inner tube‌: The tube length can be customized according to the adjustable height requirements, and the tube is drilled with equally spaced adjustment holes to meet the size adjustment.



‌Lower outer tube‌: The tube length can be customized as required and used with the upper inner tube. The general length is shorter than the upper inner tube.

‌Threaded tube nut‌: Mainly welded on the top of the lower outer tube for fine-tuning of smaller sizes.



‌Top support‌: There are many types, such as plum blossom support, U-shaped support, four-corner support, flat head support, etc.



‌Base‌: It has a good fixed support function, and the commonly used shapes are plum blossom and square.



These components together ensure the stability of the adjustable tube and the realization of the adjustment function.


Application

Here are some common applications of scaffolding support adjustable pipes:


Scaffolding Systems: Adjustable pipes are integral components in scaffolding systems, where they are used to create temporary structures for supporting workers, materials, and equipment during construction, maintenance, repair, or renovation projects. These pipes are adjustable in height, allowing for easy customization and adaptation to different work environments and requirements.

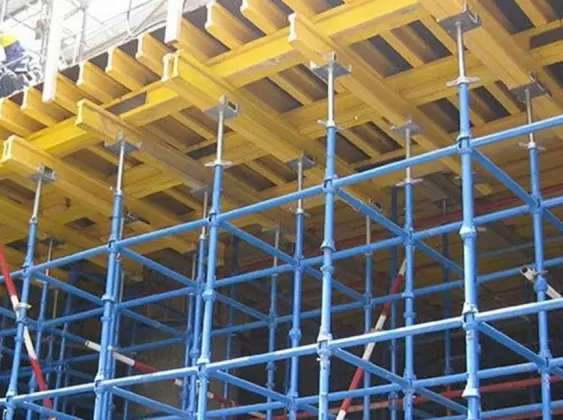

Formwork Support: Adjustable pipes are often used to support formwork structures during concrete pouring and curing processes. They help provide stability and structural support to formwork systems, ensuring that the concrete sets properly and maintains the desired shape.

Access Platforms: Adjustable pipes are utilized to construct access platforms and walkways at various heights, allowing workers to move safely and access different areas of a construction site. These platforms are essential for facilitating work tasks such as painting, plastering, and finishing.

Shoring Systems: Adjustable pipes play a crucial role in shoring applications, where they are used to provide temporary support to structures, walls, and ceilings during construction, demolition, or renovation activities. These pipes help distribute loads and prevent structural failures.

Temporary Staircases: Adjustable pipes are employed in the construction of temporary staircases and stair towers within scaffolding systems. These structures provide safe and convenient access for workers to move between different levels of a construction site.

Facade Work: Adjustable pipes are commonly used to support workers and equipment during facade work, including painting, cleaning, maintenance, and installation of building exteriors. They ensure safe and stable working conditions at elevated heights.

Roofing Projects: Adjustable pipes are utilized in roofing projects to create temporary support structures for roofers, allowing them to work safely and efficiently on roof installations, repairs, and maintenance tasks.

Industrial Maintenance: Adjustable pipes are also used in industrial settings for maintenance work on machinery, equipment, and structures. They provide a stable platform for maintenance personnel to access and perform repairs at elevated heights.
