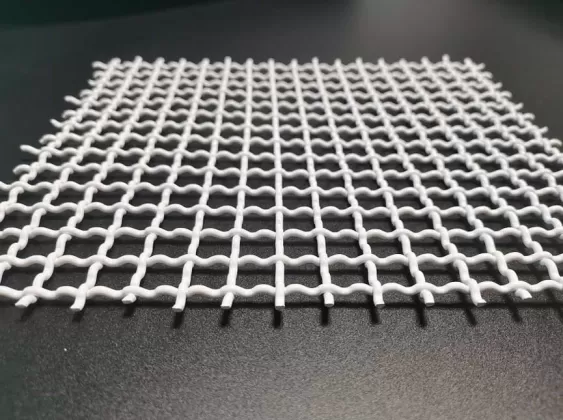

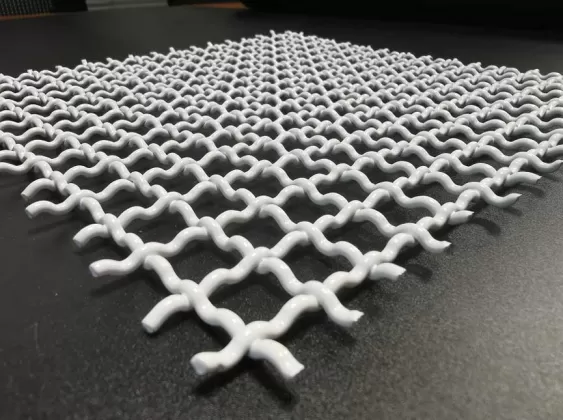

Crimped Wire Mesh is a plain weave of wire that is prebent into a wavy shape. Because the wire is bent by the mold in advance, the two directions of the wire can be placed in a relatively correct position, thus ensuring the consistency of the mesh size of the crimped wire mesh.


Share:

Features Specifications Technology Application Inquriy

Crimped Wire Mesh is a plain weave of wire that is prebent into a wavy shape. Because the wire is bent by the mold in advance, the two directions of the wire can be placed in a relatively correct position, thus ensuring the consistency of the mesh size of the crimped wire mesh.


Specifications

Product nameSquare Crimped Wire Mesh
Materialstainless steel wire, Low carbon wire, High Carbon steel wire, Aluminium wire, etc.
Wire diameter0.5mm to 20mm
Mesh1 to 30 mesh
Width1m, 1.5m, 2m, etc.
Length2m, 3m, 15m, 30m, etc.
Weaving typeFirst crimped then woven. Plain crimped, intermediate crimped, lock crimped, flat top crimped, etc.
Surface treatmentGalvanized, PVC Coated, Painting, Powder coating, etc
CharacteristicsFirm structure, good wallop-resisting, hard wearing, low cost, high strength.
ApplicationSquare crimped wire mesh can be used in mining, construction, petroleum, chemical, ocean industry, kitchen, and refrigerator, roasting flour food and meat.
PackageFirst with plastic film, then with cross straps and pallets.



Technology

ParameterCrimped Woven Wire Mesh Specification
Material OptionsStainless Steel (304, 316), Galvanized Steel, Copper, Brass, Aluminum, Carbon Steel
Wire Diameter0.5 mm to 12 mm (custom sizes available)
Mesh Size1 mm to 100 mm (custom sizes available)
OpeningSquare, Rectangular, Custom Shapes
Crimp TypesDouble Crimp, Intercrimp, Lock Crimp, Flat Top
Tensile StrengthVaries by material and wire diameterExample for Stainless Steel 304: 550-750 MPa
Yield StrengthVaries by material and wire diameterExample for Stainless Steel 304: 205 MPa
Elongation at BreakVaries by materialExample for Stainless Steel 304: 40%
HardnessVaries by materialExample for Stainless Steel 304: 70-90 HRB
DensityVaries by materialExample for Stainless Steel 304: 8.0 g/cm³
Melting PointVaries by materialExample for Stainless Steel 304: 1400-1450°C
Chemical Composition (Example: Stainless Steel 304)Carbon: ≤ 0.08%, Manganese: ≤ 2.0%, Silicon: ≤ 0.75%, Phosphorus: ≤ 0.045%, Sulfur: ≤ 0.03%, Chromium: 18-20%, Nickel: 8-10.5%, Iron: Balance
WidthStandard: 1.0 m to 2.0 mCustom sizes available
LengthStandard: 10 m to 30 m rollsCustom lengths available
ToleranceWire Diameter: ± 0.05 mmMesh Size: ± 0.5 mm
Surface TreatmentGalvanized, PVC Coated, Epoxy Coated, Polished, Uncoated (Plain)
ApplicationsIndustrial: Screening, Sieving, Filtering, SeparationAgricultural: Fencing, Grain Handling, Livestock EnclosuresArchitectural: Facades, Partitions, Security ScreensOther: BBQ Grills, Protective Screens, Construction Support
Standards and CertificationsASTM A580 (Stainless Steel Wire), ISO 9044 (Industrial Wire Mesh), DIN 43125 (Wire Mesh Specifications)
PackagingRolls wrapped in waterproof paper and plastic filmPalletized for bulk ordersCustom packaging available



Application

Crimped Wire Mesh structure beautiful, durable. Widely used in mining, petroleum, chemical industry, construction, protection nets, packaging nets, barbecue nets, vibration screens, food machinery nets, wall nets, cookware nets, mining screening and so on.
