Features Specifications Technology Application Inquriy

Characteristics:

1. The structure is soft and can adapt to the changes of the slope without being destroyed, with good stability;

2. It has strong anti-scouring ability and can withstand a water flow speed of up to 6m/s;

3. It is permeable and has strong tolerance for the natural action and filtration of groundwater. The suspended matter and silt in the water can be settled in the stone filling cracks, which is conducive to the growth of natural plants and gradually restores the original ecological environment.

Advantages of use:

1. Ecological and environmentally friendly. During the slope protection construction, people only need to assemble the gabion mesh, then put in the prepared stones and seal it. No water or electricity is required, and it will not cause pollution.

2. The material cost of the gabion mesh is low and economical.

3. The gabion mesh makes it neatly stacked, beautiful in appearance, and of good engineering quality, which can ensure the role of slope protection.

4. Strong and durable. The structural advantages and material advantages of the gabion mesh are high-tech steel wire weaving, coated with PVC for anti-corrosion, and can be used for up to 30 years

Specifications

Gabion Size(m)	Wire Diameter			Mesh Opening	Surface Treatment
	Mesh Wire (mm)	Selvage Wire (mm)	Tie wire (mm)
2x1x0.5	2.0 2.2 2.4 2.7 3.0	2.4 2.7 3.0 3.4	1.8 2.0 2.2	60x80mm 80x100mm 80x120mm 100x120mm 120x150mm	Galvanized Galfan PVC coated
2x1x1.0
3x1x0.5
3x1x1.0
4x1x1.0
6x1x1.0
2x1x0.3(Mattress)
3x1x0.3(Mattress)

Technology

Wire used low carbon steel wire,wire diameter2.2-4.0mm

Surface:Galvanized or Galfan or PVC coated and PE coated finished

The wire used to manufacture double twisted gabion wire mesh is soft annealed, mild steel wire provided with heavy zinc coating as per EN 10244/ASTM A 641 to prevent corrosion. In case of use in aggressive environments, it is further extruded with 0.5mm thick PVC Coating.

Application

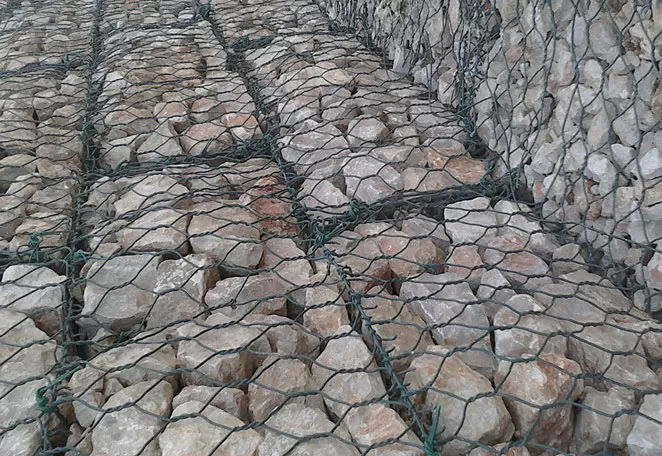

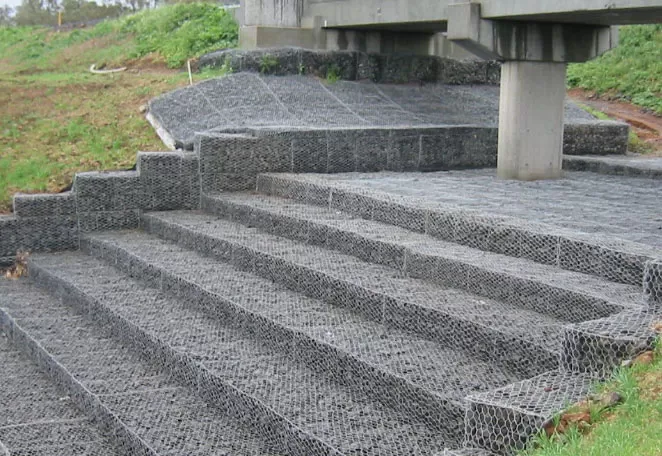

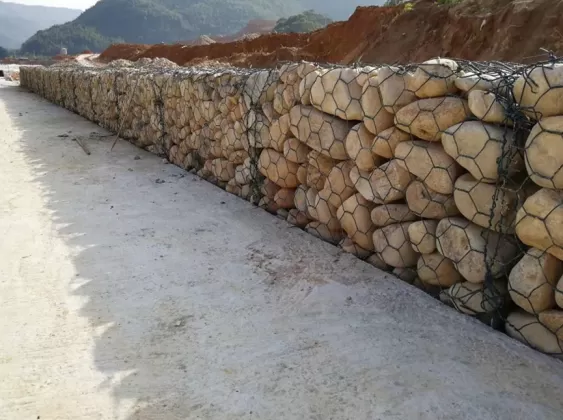

Gabion mesh can be used for slope support, foundation pit support, slope greening, railway and highway isolation and protection nets. It can also be made into boxes and mesh mats for anti-scouring protection of rivers, dams and seawalls, and for diversion of reservoirs and rivers.

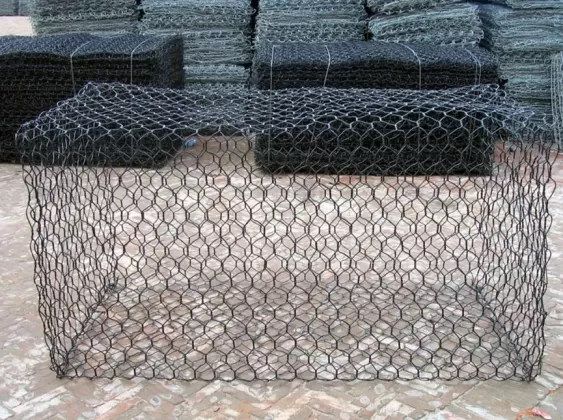

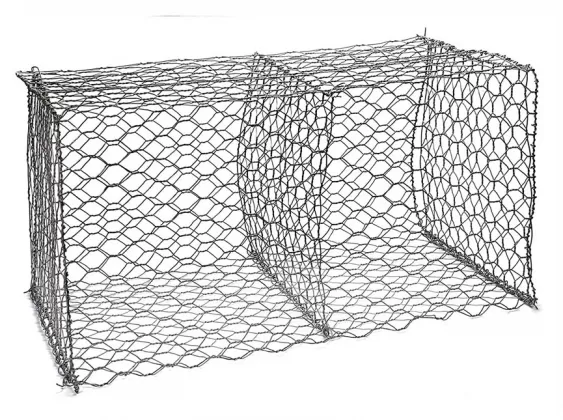

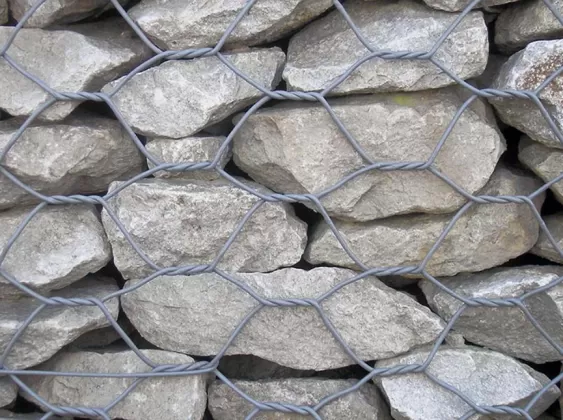

Gabion boxs

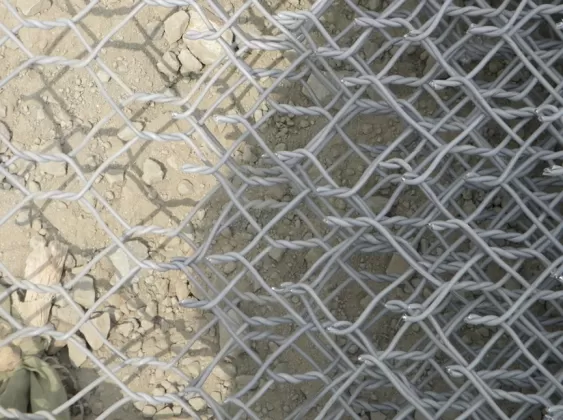

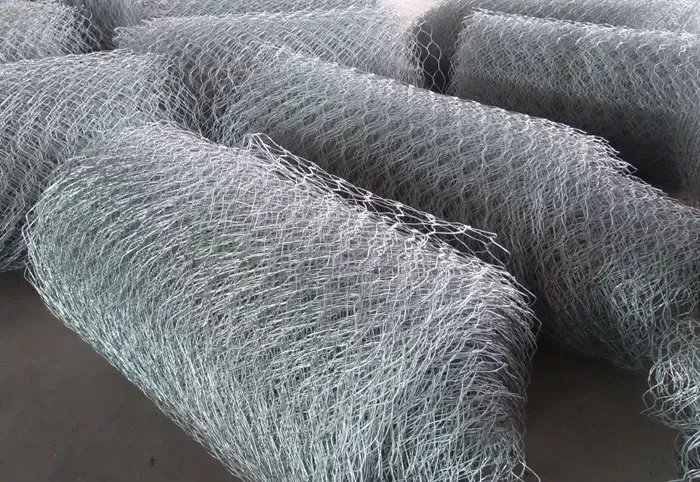

Gabion mesh
