Aluminum Wire
Aluminum Wire
Aluminum Wire
Aluminum Wire
Aluminum Wire
Aluminum Wire
Aluminum Wire
Aluminum Wire
Aluminum Wire
Aluminum Wire

Aluminum Wire

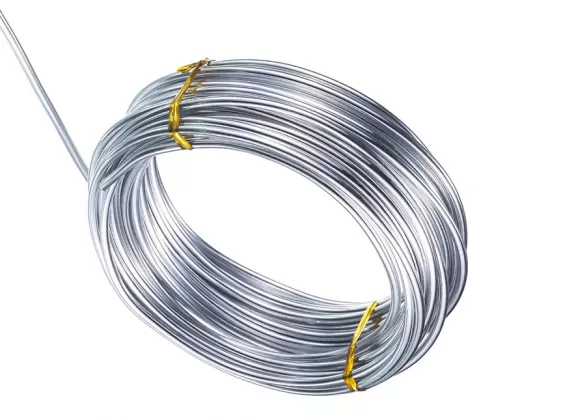

Aluminum wire is an alternative conductive material, the proportion of aluminum in aluminum wire is more than 99.6%. It has good anti-corrosion performance, good conductivity and processability, and the best conductivity is 2.08 ohms per 100 meters. The maximum tension is about 600N rust-proof, and the wire is covered with aluminum oxide. Easy to install, the wire is soft and light.

Share:

Features Specifications Technology Application Inquriy

① Creep resistance

② Tensile strength and elongation

③ Thermal expansion coefficient

④ Connectivity

⑤ Strong self-weight carrying capacity

Specifications

① Molecular Weight 26.98

② Appearance Silvery

③ Melting Point 660.37 °C

④ Boiling Point 2467 °C

⑤ Density 2700 kg/m3

⑥ Solubility in H2O N/A

⑦ Electrical Resistivity 2.6548 microhm-cm @ 0 °C

⑧ Electronegativity 1.5 Paulings

⑨ Heat of Fusion 2.55 Cal/gm mole

⑩ Heat of Vaporization 67.9 K-Cal/gm at om at 765 °C

⑪ Poisson's Ratio 0.35

⑫ Specific Heat 0.215 Cal/g/ K @ 25 °C

⑬ Tensile Strength 6800 psi Coldroled 16,000 psi.

⑭ Thermal Conductivity 2.37 W/cm/ K @ 298.2 K

⑮ Thermal Expansion (25 °C) 23.1 µm·m-1·K-1

⑯ Vickers Hardness 167 MPa

⑰ Young's Modulus 70 GPa

Technology

CompositionDiameterTensile Strength (gm)Elongation(%)
99.999%
Aluminum
5 mil125 μm60 min.2-6
8mi200 μm100 min.5-15
10 mil250 μm180 min10-18
12 mi300 μm325 min.10-20
15 mi375 μm400 min10-25


700 min.
99.99%
Aluminum

50 ppm Ni
5 mi125 μm70-12010-30
6 mi150 μm90-12010-25
8 mi200 μm140-2009-25
10 mi250 μm210-20010-30
12 mi300 μm300-42010-30
15 mi375 μm500-70010-30
16 mi400 μm550-80010-30
20 mil500 μm800-110010-30



Application

① Electric Heater.

② Electric Moter.

③ High Temperature Instrument.

④ High Temperature Instrument.

⑤ PVC Insulated Cable.

⑥ Hr PVC Winding Wires & 3 Core Flat Lead Cables.

⑦ Insulated Fixed fixable cords & Wires.

⑧ PVC Insulated armoured cables.

Inquriy

If You Have Any Needs for Our Products

Please contact us no any hesitate. Our professional staff will contact you immediately and give you the most professional product acceptance and the best procurement plan. We sincerely welcome your inquiries
