Wire

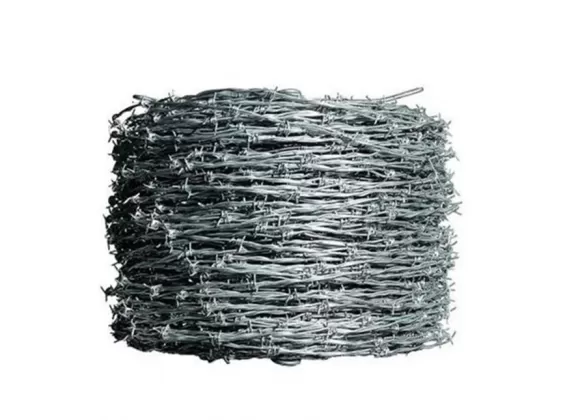

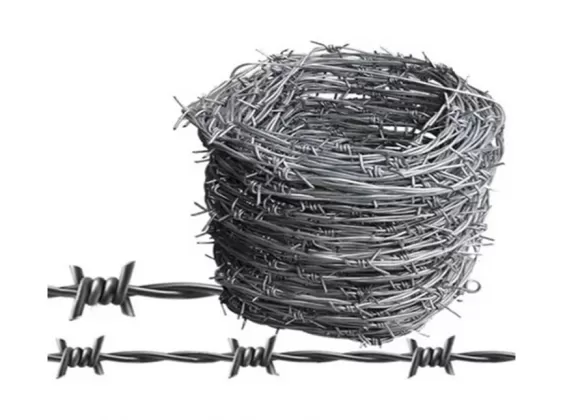

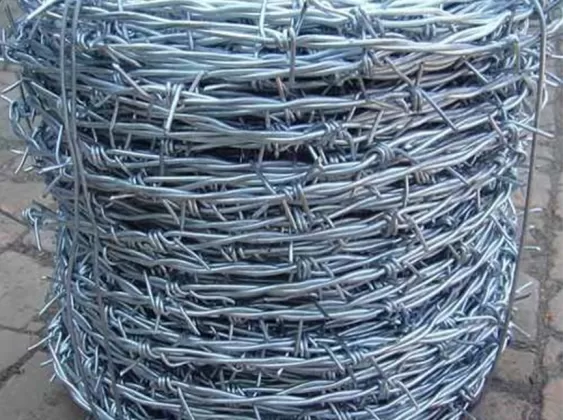

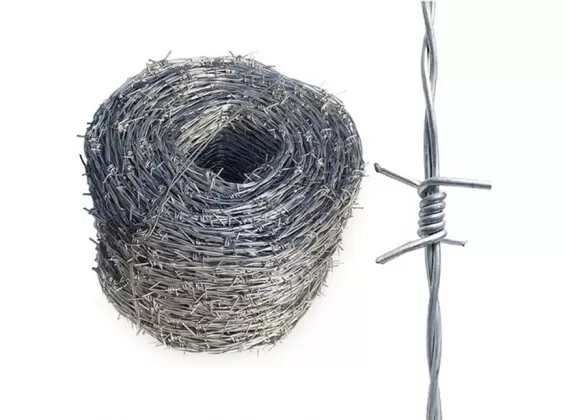

Barbed Iron Wire, commonly referred to as barbed wire, consists of a strong iron or steel wire with sharp barbs or points spaced at intervals along its length. This type of wire is primarily used for fencing and security purposes.
A person or animal trying to pass through or over barbed wire will suffer discomfort and possibly injury. Barbed wire fencing requires only fence posts, wire, and fixing devices such as staples. It is simple to construct and quick to erect, even by an unskilled person.
Share:
Construction: Barbed wire typically consists of two strands twisted together, with barbs attached at regular intervals. The barbs are sharp and designed to deter climbing or cutting.
Material: Made from galvanized iron or steel, which enhances its durability and resistance to corrosion.
Design: Available in various styles, including single-strand and double-strand wire, depending on the level of security required.
Specifications
Type | Wire Gauge (SWG) | Barb Distance (cm) | Barb Length (cm) | |
Electric Galvanized Barbed Wire;Hot- dip zinc plating barbed wire | 10#x12# | 7.5-15 | 1.5-3 | |
12#x12# | ||||
12#x14# | ||||
14#x14# | ||||
14#x16# | ||||
16#x16# | ||||
16#x18# | ||||
PVC coated barbed wire;PE barbed wire | before coating | after coating | 7.5-15 | 1.5-3 |
1.0mm-3.5mm | 1.4mm-4.0mm | |||
BWG11#-20# | BWG8#-17# | |||
SWG11#-20# | SWG8#-17# | |||
PVC PE coating thickness:0.4mm-0.6mm;different colors or length are available at customers request |
Technology
Material: 1. hot-dipped galvanized wire 2. electro galvanized wire 3. PVC wire
Wire Diameter(Line wire/Barbed wire):1.3mm, 1.6mm, 1.8mm, 2.1mm
Coil Length: 100m, 500m
Coil Weight: 5kg/roll, 6.5kg/roll, 7.5kg/roll, 13.5kg/roll, 20kg/roll
Twist Type: Forward twist, Forward and reverse twist
Barbed Space: 100mm, 125mm, 150mm
Application
· Fencing: Widely used in agricultural settings to contain livestock and protect crops from intruders.
· Security: Employed in military installations, prisons, and high-security areas to prevent unauthorized access.
· Construction Sites: Used for temporary barriers to protect equipment and materials.
· Perimeter Protection: Often found on top of fences to enhance security in commercial and industrial properties.
Inquriy
If You Have Any Needs for Our Products
Please contact us no any hesitate. Our professional staff will contact you immediately and give you the most professional product acceptance and the best procurement plan. We sincerely welcome your inquiries
SEND INQUIRY NOW
Related Products
Razor wire, also known as barbed tape or concertina wire, is a type of fencing wire that features sharp edges or points arranged at intervals along the wire. It is primarily used for security and deterrence purposes.
Barbed Iron Wire, commonly referred to as barbed wire, consists of a strong iron or steel wire with sharp barbs or points spaced at intervals along its length. This type of wire is primarily used for fencing and security purposes.
PVC coated iron wire is a type of wire that is coated with a layer of polyvinyl chloride (PVC). This coating provides protection and enhances the wire's durability and versatility.
Small coil wire, also known as coiled wire, is made of low carbon steel wire Q195, which is a re-reeled and processed product of black iron wire, galvanized iron wire, PVC coated wire, stainless steel wire, copper wire, etc.

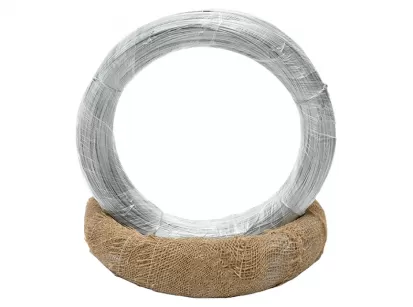

Hot-Dipped Galvanized Iron Wire
