Features Specifications Technology Application Inquriy

(1) It is softer and more flexible than ordinary black iron wire (raw silk, unannealed wire, harder, can be used as fan cover wire), with uniform softness and color.

(2) It is mainly used in construction, mining, chemical industry, welding mesh, welding clothes hanger, reprocessing, etc.

(3) After annealing, the iron wire becomes softer and more flexible.

Specifications

SIZE AWG/MCM	CIRCULAR MILS	NORMAL CROSS SECTION AREA MM²	NOMINAL DIAMETER INCHES	NOMINAL DIAMETER MM	LBS. PER MFT
36	25.00	0.0123	.0050	.127	.0757
35	31.52	0.0161	.00561	.143	.0954
34	39.75	0.0200	.00630	.160	.1203
33	50.13	0.0252	.00708	.180	.1517
32	63.21	0.0320	.00795	.202	.1913
31	79.70	0.0400	.00893	.227	.2413
30	100.5	0.0503	.01003	.255	.3042
29	126.7	0.0646	.01126	.286	.3836
28	159.8	0.0804	.01264	.321	.4837
27	201.5	0.102	.01420	.361	.6100
26	254.1	0.128	.01594	.405	.7692
25	320.4	0.163	.01790	.455	.9699
24	404.0	0.205	.02010	.511	1.223
23	509.5	0.259	.02257	.573	1.542
22	642.4	0.325	.02535	.644	1.945
21	810.1	0.412	.02846	.723	2.452
20	1,020	0.519	.03196	.812	3.154
18	1,620	0.832	.04030	1.024	5.015
16	2,580	1.31	.0508	1.29	7.974
14	4,110	2.08	.0641	1.63	12.68
12	6,530	3.31	.0808	2.05	20.16
10	10,380	5.27	.1019	2.59	32.06
9	13,090	6.62	.1144	2.91	40.42
8	16,510	8.35	.1285	3.26	51.0
6	26,240	13.3	.1620	4.11	80.9
4	41,740	21.2	.2043	5.19	129
3	52,620	26.7	.2294	5.83	162
2	66,630	33.6	.2576	6.54	205
1	83,690	42.4	.2893	7.35	259
1/0	105,600	53.4	.3249	8.25	326
2/0	133,100	67.5	.3648	9.27	411
3/0	167,800	85.0	.4096	10.40	518
4/0	211,600	107.2	.4600	11.68	653

Technology

(1) Wire diameter: From 0.4mm to 5mm

(2) Tensile strength: Normal is 350~500N/mm2

(3) Packing: Plastic film inside, hessian cloth outside Or Plastic film inside, woven bag outside

(4) Roll weight: 10kg/roll, 20kg/roll, or any other weight you want

(5) Quantity: Our mini Order quantity is 5 tons

The specification can be customized, suit your demand

Application

The application used in construction, mining, chemical industry, welding mesh, welding clothes hanger, reprocessing, etc.

Black Annealed Wire decorative

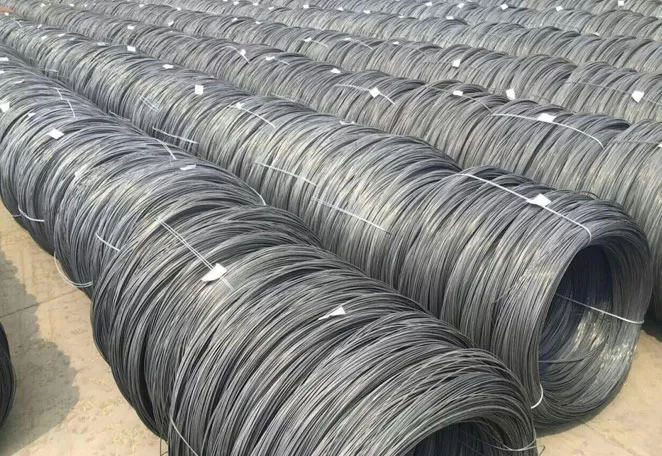

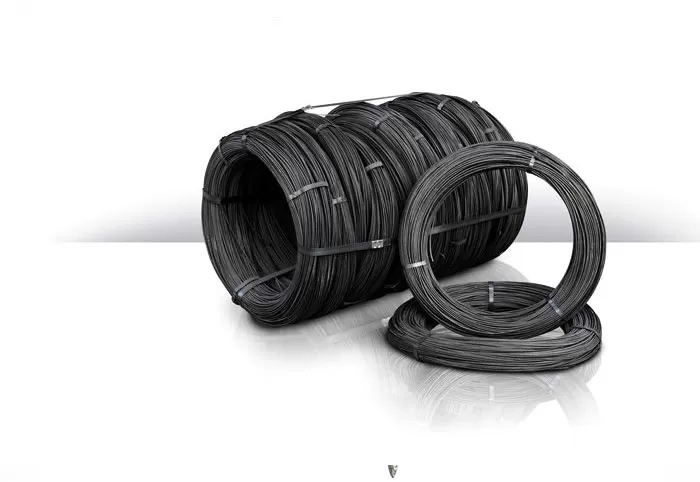

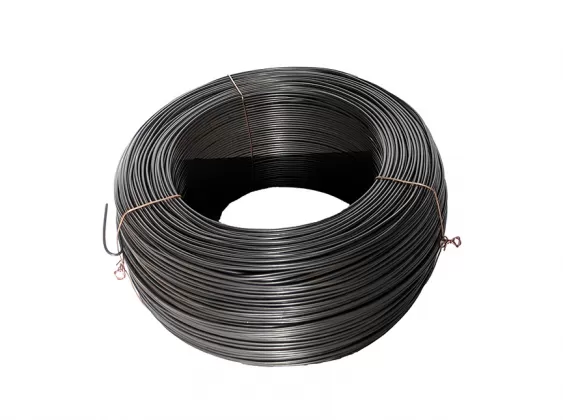

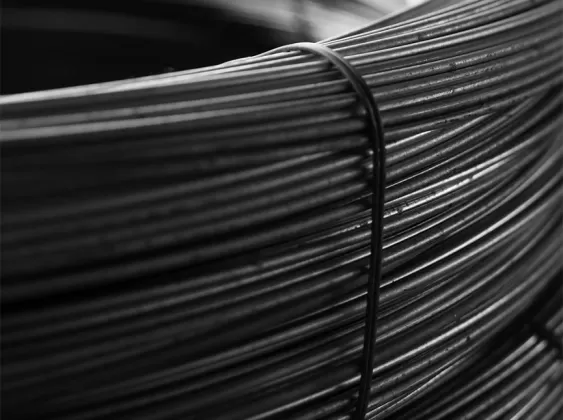

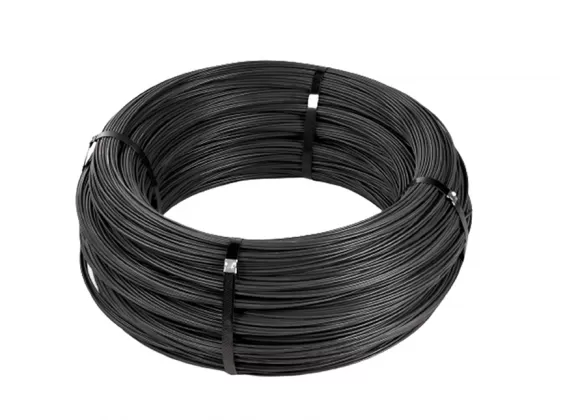

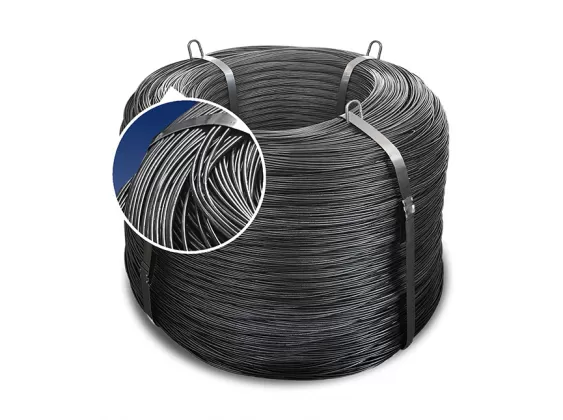

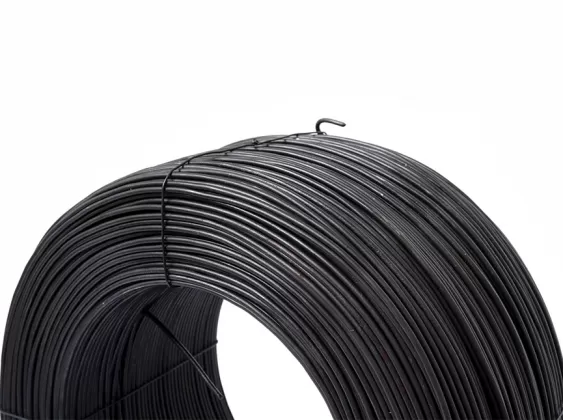

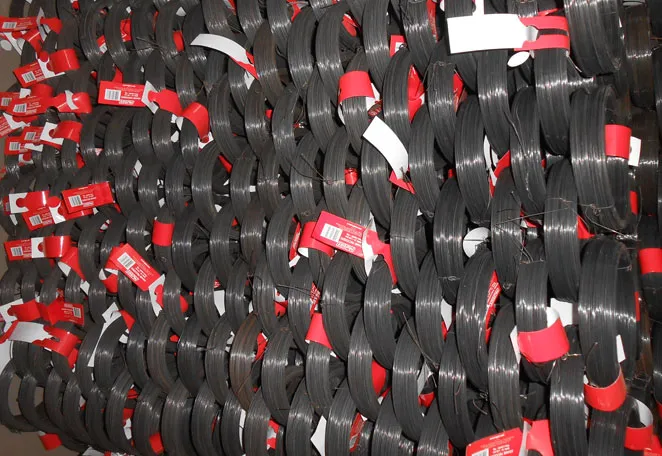

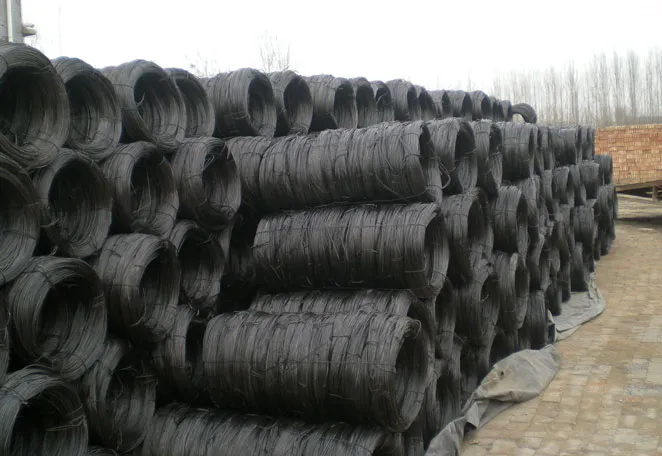

Black Annealed Wire rolls
