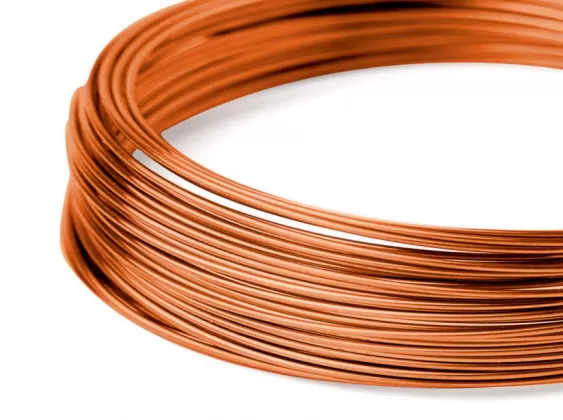

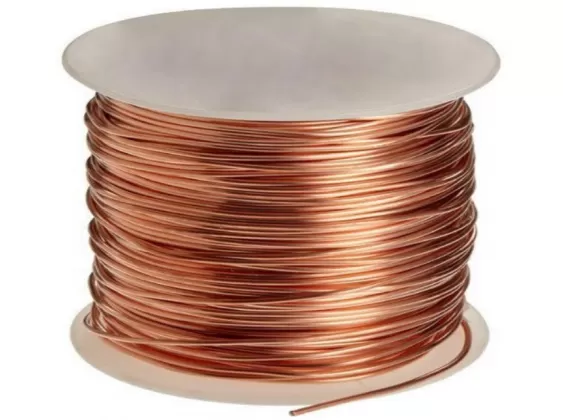

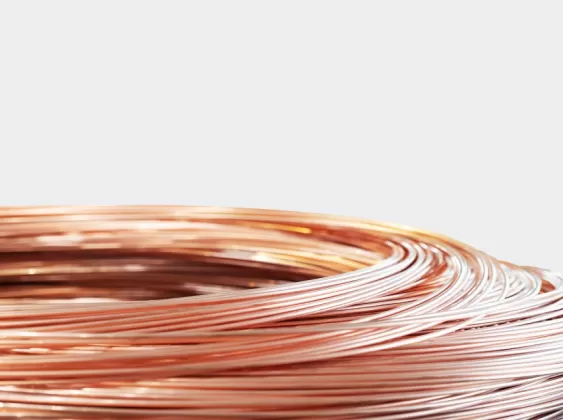

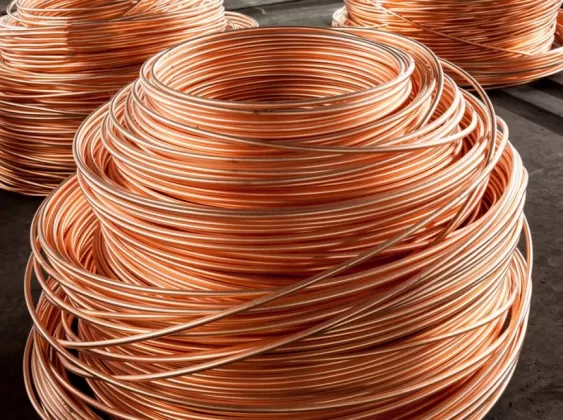

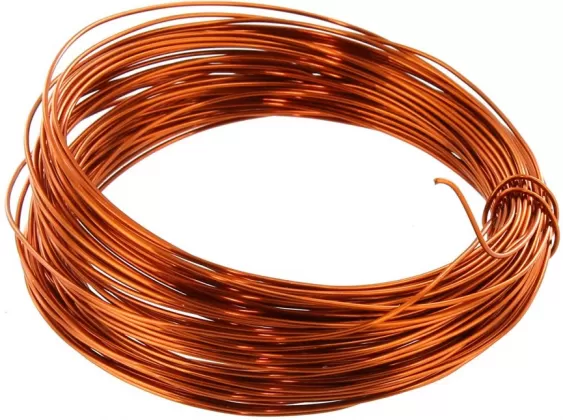

Copper is a highly conductive metal that's considered the gold standard for electrical wiring. Not only does copper transport electicity more efficiently than other materials,but it is also resistant to corrosion and has a high thermal resistance than helps prevent overheating.

Share:

Features Specifications Technology Application Inquriy

1. High Electrical Conductivity

2. Good Ductility

3. Shock Corrosion Resistance

4. Thermal Conductivity

5. Malleability

6. Low Resistance

7. Versatility

8. Alloy Compatibility

9. Recyclability

Specifications

1. Material Composition

Copper Purity: Typically 99.9% pure copper (Cu) for electrical applications.

2. Electrical Properties

Electrical Conductivity: Approximately 58% IACS (International Annealed Copper Standard).

3. Mechanical Properties

Tensile Strength: Typically ranges from 210 to 250 MPa (megapascals), depending on the temper.

Yield Strength: Approximately 70 to 90 MPa for annealed copper.

4. Thermal Properties

Thermal Conductivity: About 390 W/(m·K) at room temperature.

5. Dimensional Specifications

Wire Gauge: Commonly measured in AWG (American Wire Gauge) or SWG (Standard Wire Gauge).

6. Standards and Certifications

ASTM B3: Specification for bare copper wire.

ASTM B8: Specification for stranded copper conductor.

UL Standards: Various Underwriters Laboratories (UL) standards for insulation and safety.

7. Environmental Considerations

Corrosion Resistance: Performance under various environmental conditions, such as humidity and temperature.

Recyclability: Copper is 100% recyclable without loss of quality.

Technology

Appearance Red-orange metallic luster

Standard atomic weight Ar°(Cu)

63.546±0.003[1]

63.546±0.003


Phase at STP solid

Melting point 1357.77 K (1084.62 °C, 1984.32 °F)

Boiling point 2835 K (2562 °C, 4643 °F)

Density (at 20° C) 8.935 g/cm3 [3]

when liquid (at m.p.) 8.02 g/cm3

Heat of fusion 13.26 kJ/mol

Heat of vaporization 300.4 kJ/mol

Molar heat capacity 24.440 J/(mol·K)

Application

*Wire and cable

*Electronics and related devices

*Electric motors

*Renewable energy production

*Architecture

*Antibiofouling
