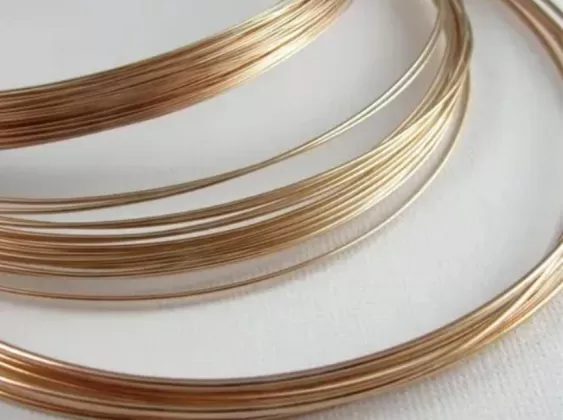

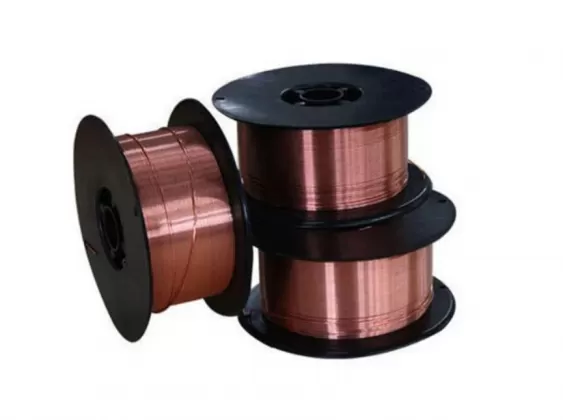

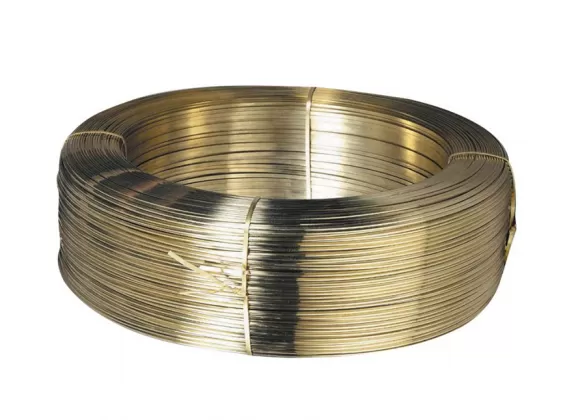

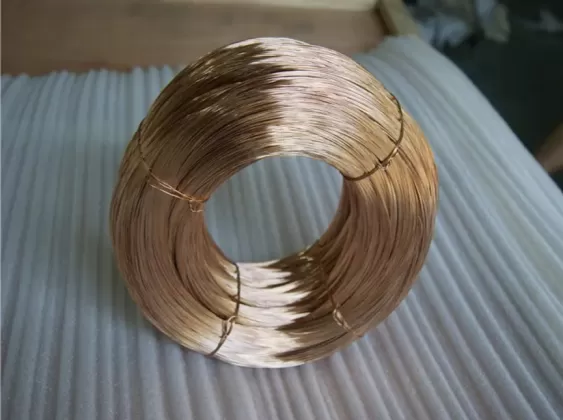

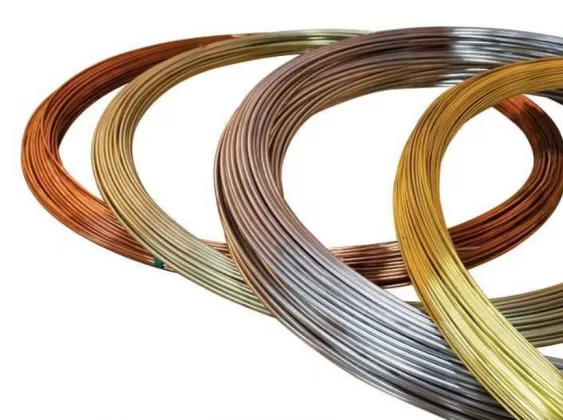

Phophor Wire
Phophor Wire
Phophor Wire
Phophor Wire
Phophor Wire
Phophor Wire
Phophor Wire
Phophor Wire
Phophor Wire
Phophor Wire

Phophor Wire

1. Composition

Copper Alloys: Phosphor wire is primarily made of copper, tin, and a small percentage of phosphorus, typically around 0.02% to 0.35% phosphorus.

Share:

Features Specifications Technology Application Inquriy

*Strength and Durability

*Fatigue Resistance

*Good Corrosion Resistance

*Electrical Conductivity

* Machinability

*Spring Properties

* Ductility

* Aesthetic Appeal

*Thermal Conductivity

Specifications

Copper (Cu): Approximately 90% to 95%.

Tin (Sn): Typically around 5% to 10%.

Phosphorus (P): Generally between 0.02% and 0.35%.

Other Elements: May contain trace amounts of elements like lead (Pb) and zinc (Zn).

Technology

Mechanical Properties

Tensile Strength: Usually ranges from 400 to 700 MPa, depending on the specific alloy and processing.

Yield Strength: Approximately 200 to 450 MPa.

Elongation: Generally around 5% to 30%, depending on the temper and alloy.

Application

Electrical: Used in connectors, terminals, and electrical contacts.

Mechanical: Common in springs, fasteners, and marine hardware.

Artistic: Used in jewelry and decorative applications due to its attractive appearance.

Inquriy

If You Have Any Needs for Our Products

Please contact us no any hesitate. Our professional staff will contact you immediately and give you the most professional product acceptance and the best procurement plan. We sincerely welcome your inquiries
