Wire

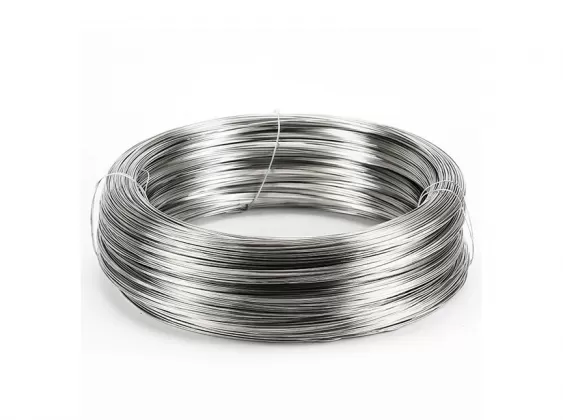

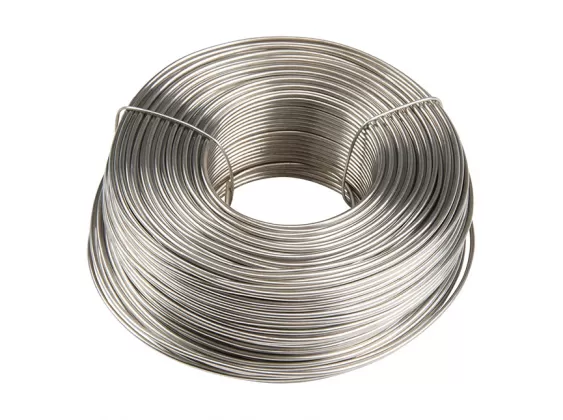

Stainless steel wire is a kind of line product with different specifications and models made of stainless steel, which can use a magnet to distinguish whether it is stainless steel wire. The magnetic one is iron wire, and the non-magnetic one is stainless steel wire. The common stainless steel wires with good corrosion resistance and high-cost performance are 304 and 316 stainless steel wires.
Share:
(1) High tensile strength and corrosion resistance
(2) High strength
(3) High bearing capacity
(4) Rust resistance.
(5) High elongation.
(6) Good softness and flexibility, can be bent to various shapes.
Specifications
Wire diam (mm) | Tolerance(mm) | Max.deviation(mm) |
0.020-0.049 | +0.002-0.001 | 0.001 |
0.050-0.074 | ±0.002 | 0.002 |
0.075-0.089 | ±0.002 | 0.002 |
0.090-0.109 | +0.003-0.002 | 0.002 |
0.110-0.169 | ±0.003 | 0.003 |
0.170-0.184 | ±0.004 | 0.004 |
0.185-0.199 | ±0.004 | 0.004 |
0.-0.299 | ±0.005 | 0.005 |
0.300-0.310 | ±0.006 | 0.006 |
0.320-0.499 | ±0.006 | 0.006 |
0.500-0.599 | ±0.006 | 0.006 |
0.600-0.799 | ±0.008 | 0.008 |
0.800-0.999 | ±0.008 | 0.008 |
1.00-1.20 | ±0.009 | 0.009 |
1.20-1.40 | ±0.009 | 0.009 |
1.40-160 | ±0.010 | 0.010 |
1.60-1.80 | ±0.010 | 0.010 |
1.80-2.00 | ±0.010 | 0.010 |
2.00-2.50 | ±0.012 | 0.012 |
2.50-3.00 | ±0.015 | 0.015 |
3.00-4.00 | ±0.020 | 0.020 |
4.00-5.00 | ±0.020 | 0.020 |
Technology
(1) Material: SS201/301/304/309/310/316/316L/321/410/430
(2) Wire Diameter: 0.02 mm-5 mm
(3) Roll /spoolweight: 10kg/roll, 15kg/roll, 2kg/reel

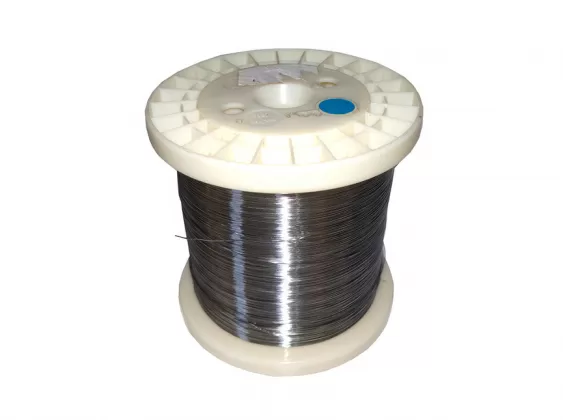

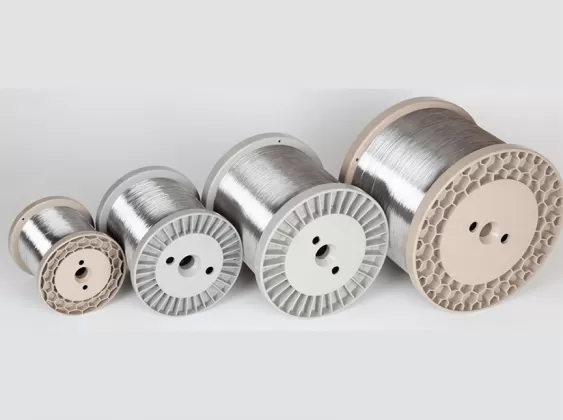

(4) Packing: spool/reel, inner spool outer wooden box, pallet, wooden box according to customer requirements. (Generally, when the wire is thinner: 0.02-1mm will choose to use reel packaging, 1mm or more will choose 5kg/reel, etc.
Application
Automobile Industry, Food Industry, Food Industry Engineering, Construction, Chemical Industry
